Architectural Drawing and Interior Catalog Matching
Explore drawing-to-catalog matching, dimension checks and a furnished-room fit in an eight-stage 3D guide. Three recorded source sets show the workflow; live generation is currently paused.
Overview
Live generation is currently paused. The public eight-stage 3D guide, recorded source examples and downloadable film remain available. The implemented MVP accepts new PDF, PNG or JPEG drawings and furniture catalogs, using a Codex Mode 1 agent with GPT-6.1 sol and max reasoning to choose page searches, selective OCR, visual inspection and supported catalog candidates. The agent reviews nominal width, height and depth against optional available-space constraints, directs built-in ImageGen to stage the selected furniture in a furnished room, visually reviews the actual result and packages hash-verified artifacts. Three real source sets include an annotated Case Systems elevation with its 306-page catalog, IKEA ENHET manufacturer combinations and Herman Miller OE1 technical drawings. Manufacturer example drawings are not independent measured rooms. Unmatched items and revision conflicts stay visible. The 64-second interactive companion explains eight stages and places the cabinet between adjoining units under a continuous counter, with upper storage, a worktable, chairs and a courtyard. Exact nominal width fit, infill and a blocked oversized placement have distinct behavior. Installed geometry, quantities, prices and installation tolerances still require supporting evidence.
A grounded example

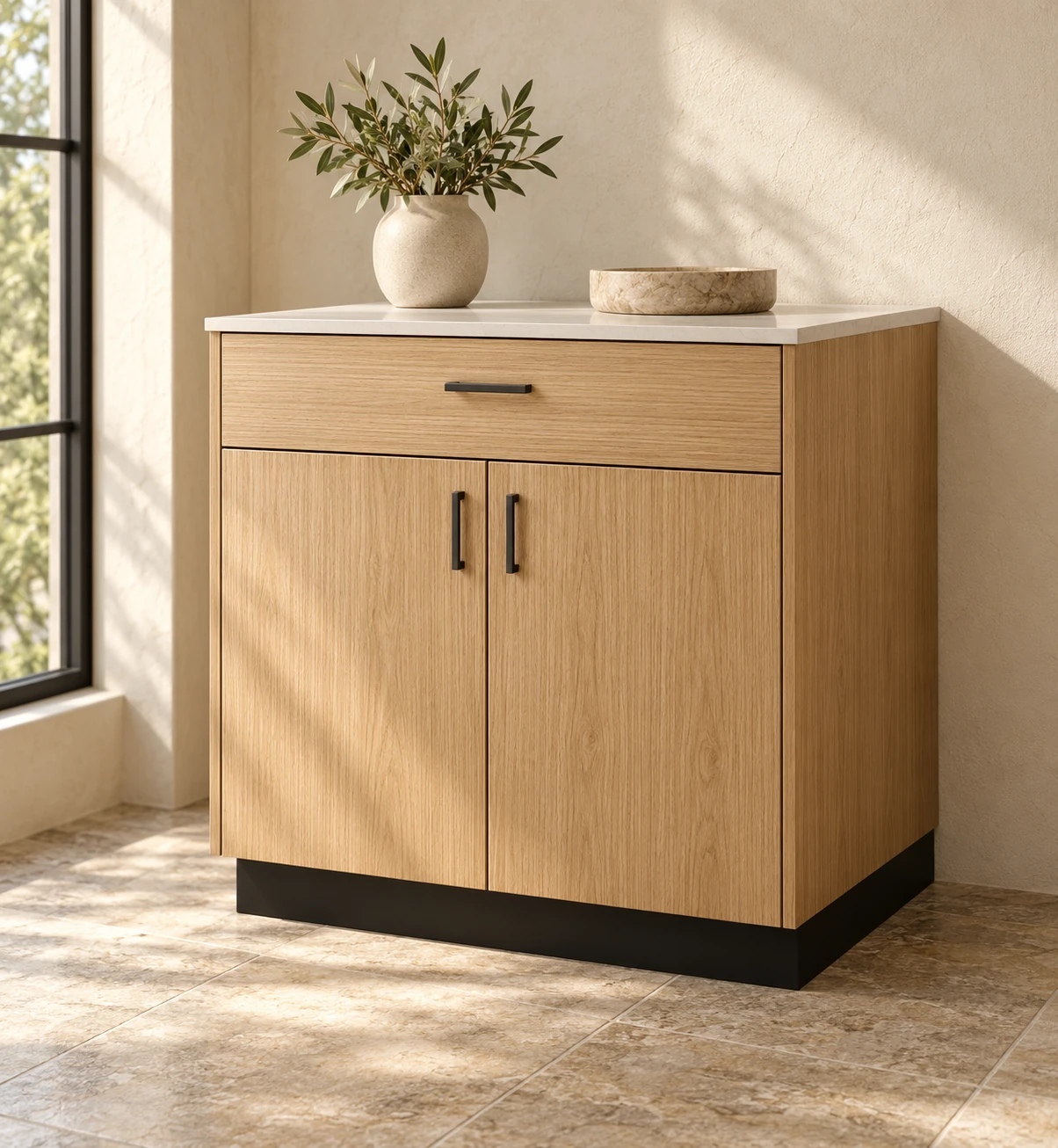

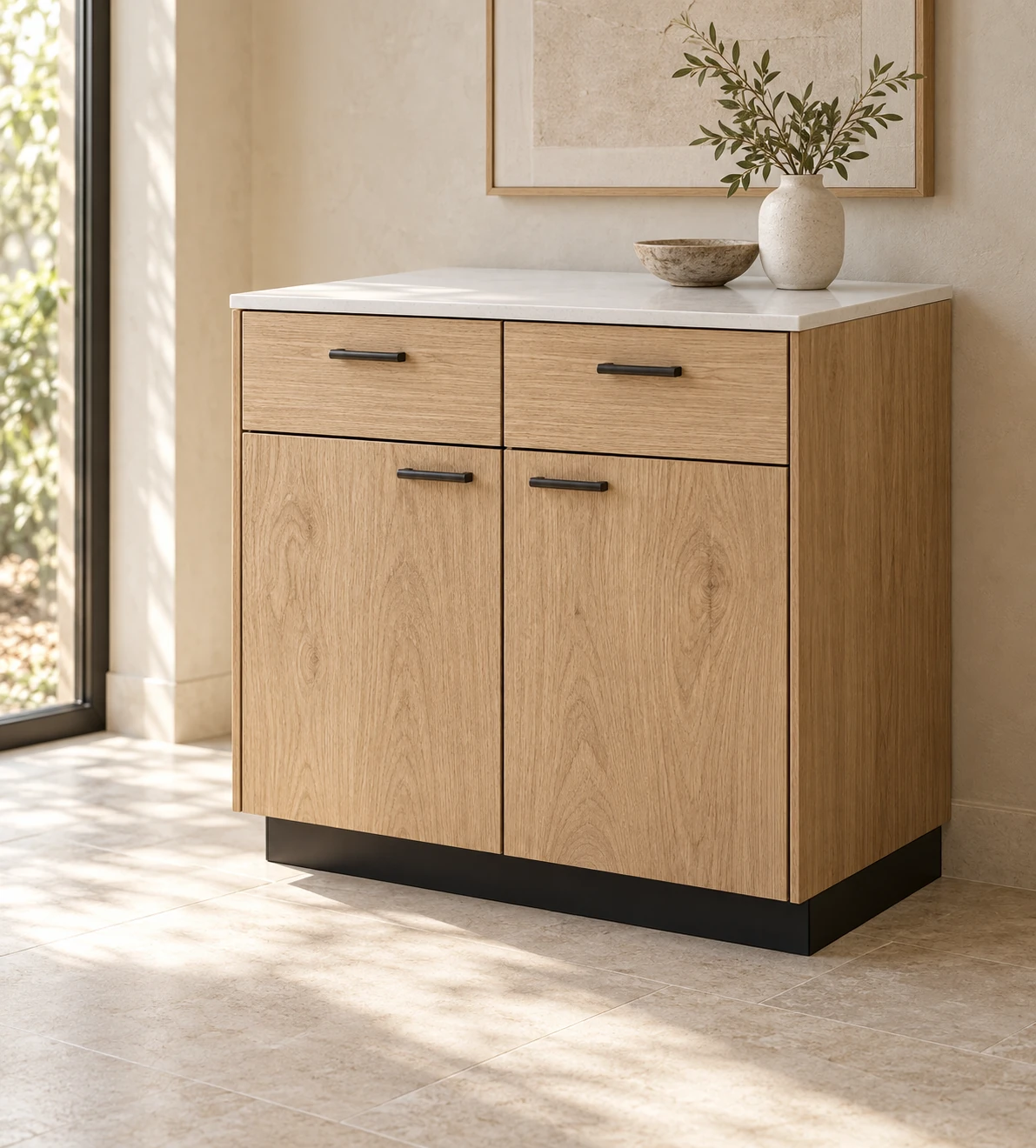

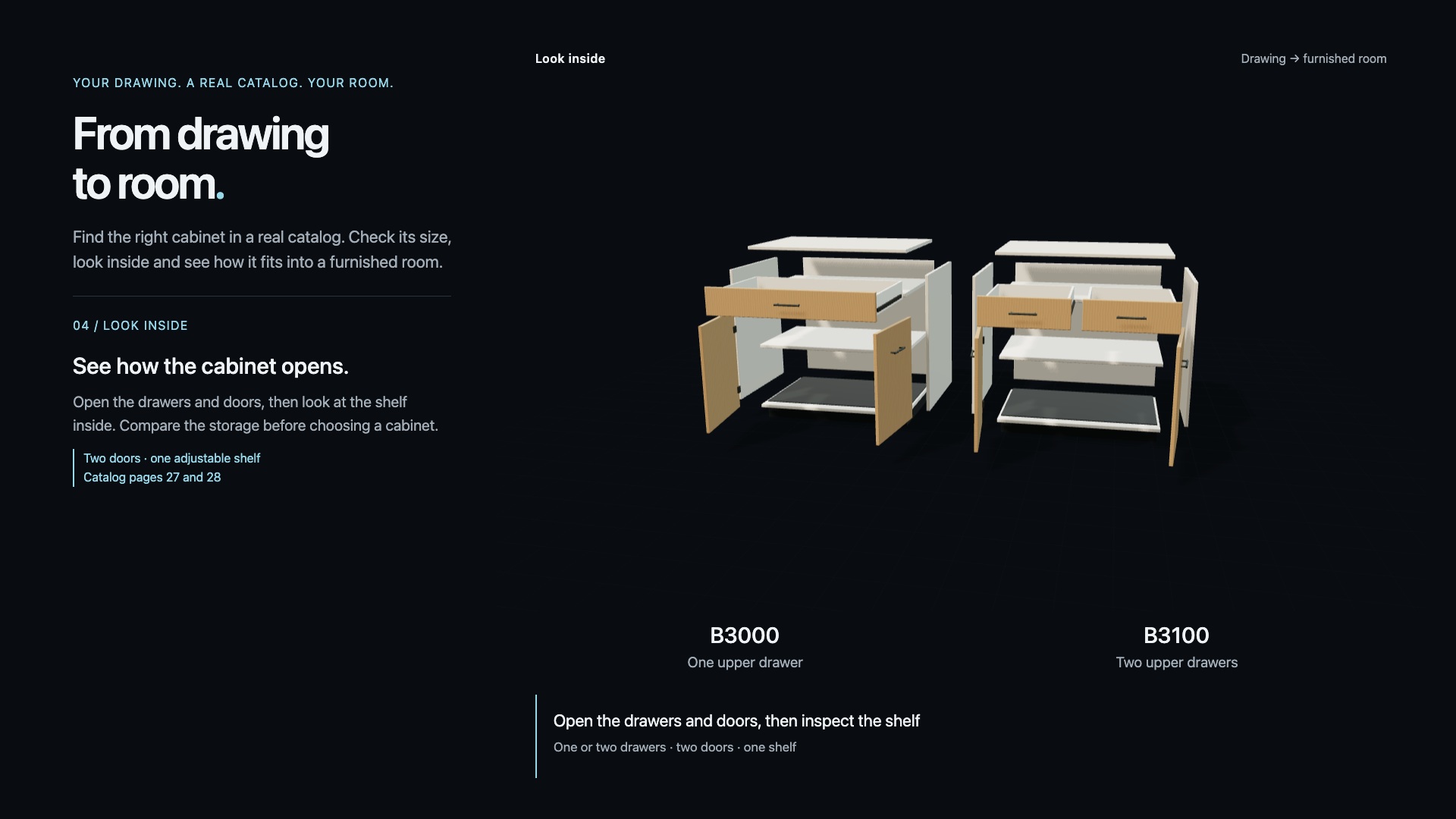

B3000 appears on page 1 of the original elevation template and resolves to page 27 of the recovered catalog: one upper drawer, two hinged doors and one adjustable shelf. B3100 appears on page 3 and resolves to page 28: two side-by-side upper drawers above the same two-door lower compartment. The 3D study makes this difference visible and lets visitors open, separate and select the components.
Dimensions and review
The initial model uses a catalog-allowed 36 W x 34 H x 24 D inch configuration. The width control explores a reviewed subset of allowed variants. Installed sizes still need drawing evidence; repeated callouts across views do not establish physical quantity. Finish, hardware and movement are illustrative. The recovered mapping also contains useful failure cases: W0100 is a two-door wall cabinet, and R1000 is a wall scribing filler.
A functional full workflow
A real Codex Mode 1 CLI agent uses GPT-6.1 sol with max reasoning and the installed ImageGen, design and PDF drawing-reading skills. It chooses the matching strategy, inspects actual document pixels and native/OCR text, reviews evidence, generates a furnished-room concept and packages the result. Independent tools verify original hashes, quotations, page coordinates, nominal fit arithmetic and phase receipts. The Mac executes the agent through this project's own reverse SSH bridge; Hypnos runs the owner-scoped API without loading a GPU model. The public 3D guide and film remain available while live generation is paused.
Document intake when generation is active
Live generation is currently paused. The implemented intake accepts one drawing and one catalog as PDF, PNG or JPEG, up to 16 MiB each: 32 drawing pages or 500 catalog pages. Match & render validates both files and starts processing in one action. Room direction, finish and available width, height and depth are optional. Processing updates, elapsed time and completed outputs appear on the same page. An optional preview action lets you inspect the files first. Review the matches and fit, then download the room PNG, draft BOM CSV and full ZIP. Original files stay private and are excluded from exports; source access expires after 24 hours.
Three grounded source sets
The recovered annotated Case Systems elevation includes red W0100 revisions over black W2052 labels, which require a revision check. IKEA ENHET uses actual combination drawings from the March 2026 buying guide; Herman Miller OE1 uses its actual dimension drawings and product sheet. The latter two drawings come from their respective catalog documents, so their room staging is authored rather than a recovered site measurement. The original B3000/B3100 casework walkthrough remains available beside the general workspace.
Project figures
What It Covers
- Accepts new PDF/image drawings and catalogs with native text, selective OCR and source coordinates
- Runs actual Codex and ImageGen phases with owner-scoped exports and recorded completion receipts
- Follows eight animated stages, including a furnished room, exact nominal placement, infill and blocked insertion
- Distinguishes catalog dimensions, installed drawing dimensions and repeated-view quantities
- Carries unresolved catalog, finish, quantity and price fields into draft BOM review
Stack And Topics
- Python
- PyMuPDF
- OpenCV
- OCR
- Catalog Indexing
- Codex Mode 1
- GPT-6.1 sol
- ImageGen
- SQLite
- BOM Review
- Three.js
- glTF
- Visual QA
